X491 Inspection Drone

Ultra Long Endurance Drone

120 minutes

Max. Flight Time

6-13 m/s

Cruising Speed

500m

Max. Rise Limit

5kg

Max. Payload

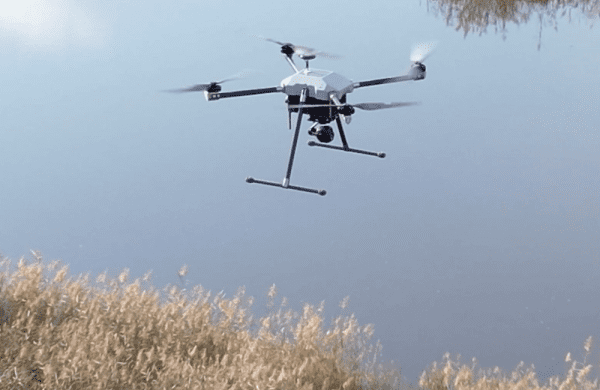

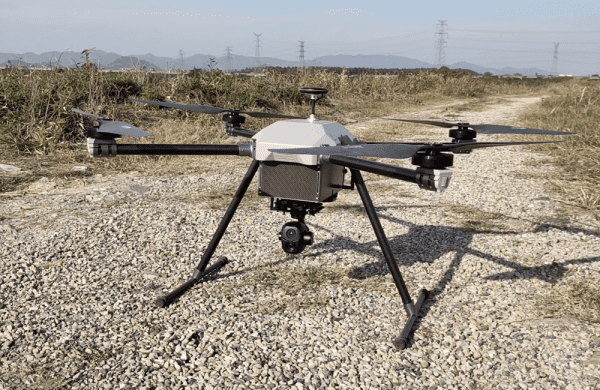

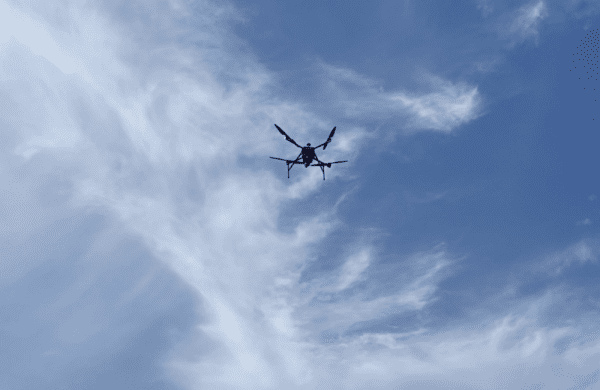

X491 Overview

The X491 drone, with a 120-minute flight time and Max. 5kg payload, can travel up to 65km. Featuring modular, quick-assembly design and integrated flight control, it supports manual and autonomous modes. Compatible with remote controllers and various ground stations. It can be equipped with various gimbal options such as single-light, dual-light, and triple-light for applications in power line inspection, pipeline monitoring, and search and rescue missions. Additionally, it can be fitted with dropping or releasing mechanisms for delivering supplies.

Product Features

The X491 drone offers extended 120-minute flights, easy operation, and cost-saving efficiency. Its modular build and customizable gimbals suit diverse tasks, while its cargo drop capability delivers to remote areas.

Extended Flight Time
With a remarkable 120-minute flight duration, the X491 enables longer missions without frequent landings for recharging.

Quick Assembly and Disassembly
Its modular design ensures swift and hassle-free assembly and disassembly, facilitating easy transport and flexible deployment.

User Friendly Operation
The drone’s extended range and payload capacity significantly reduce manpower needs and operational time, ideal for monitoring long infrastructure networks.

Customizable Gimbal Configurations
The X491 can be fitted with various gimbals, making it highly adaptable for scenarios like inspections, search and rescue, and aerial surveying.

Cost and Time Efficiency
The drone’s extended range and payload capacity significantly reduce manpower needs and operational time, offering substantial savings.

Capability for Cargo Drop and Release
Equipped for cargo dropping or release mechanisms, the X491 is able to transport supplies to inaccessible or remote locations.

Optional Gimbal Pods

Years of evolution have crafted the X491 into a superior, precise, and safe drone, boasting extended 120-minute flights, user-friendly operation, cost and time efficiency, quick assembly, versatile gimbal configurations, and cargo drop capabilities.

Compatible Deployment Devices

The X491 Drone integrates with a variety of compatible deployment devices, from cargo boxes and release hooks to emergency drop ropes, empowering it for precise delivery tasks and critical material transport.

Equipped for Specialized Missions

The X491 Drone is customizable with a suite of devices for specific applications, from long-range communication to environmental monitoring and agricultural assessment, ensuring versatility across mission-critical scenarios.

Technical Specifications

Aerial Platform

Dimension (unfolded)	740 mm * 770 mm * 470 mm (29.13″ x 30.31″ x 18.50″)
Dimension (folded)	300 mm * 230 mm * 470 mm (11.81″ x 9.06″ x 18.50″)
Rotor distance	968 mm
Product Material	Carbon fiber + 7075 aviation aluminum + Plastic
Total weight	7.3 kg
Rain Prevention Level	Moderate Rain
Wind Resistance Level	Level 6
Noise Level	< 50 dB
Folding method	The arms fold downwards, with quick-release landing gear and propellers.

Flight Parameters

Hover-flight time	110 mins (Max)
Route-flight time	120 mins (Max)
Standard Payload	3.0 kg
Maximum Payload	5.0 kg
Cruising speed	10 m/s
Maximum Rise Rate	5 m/s
Maximum Drop Rate	3 m/s
Maximum Rise Limit	5000 m
Working Temperature	-40℃~50℃
Water Resistance Level	IP67

*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy

Industry Applications

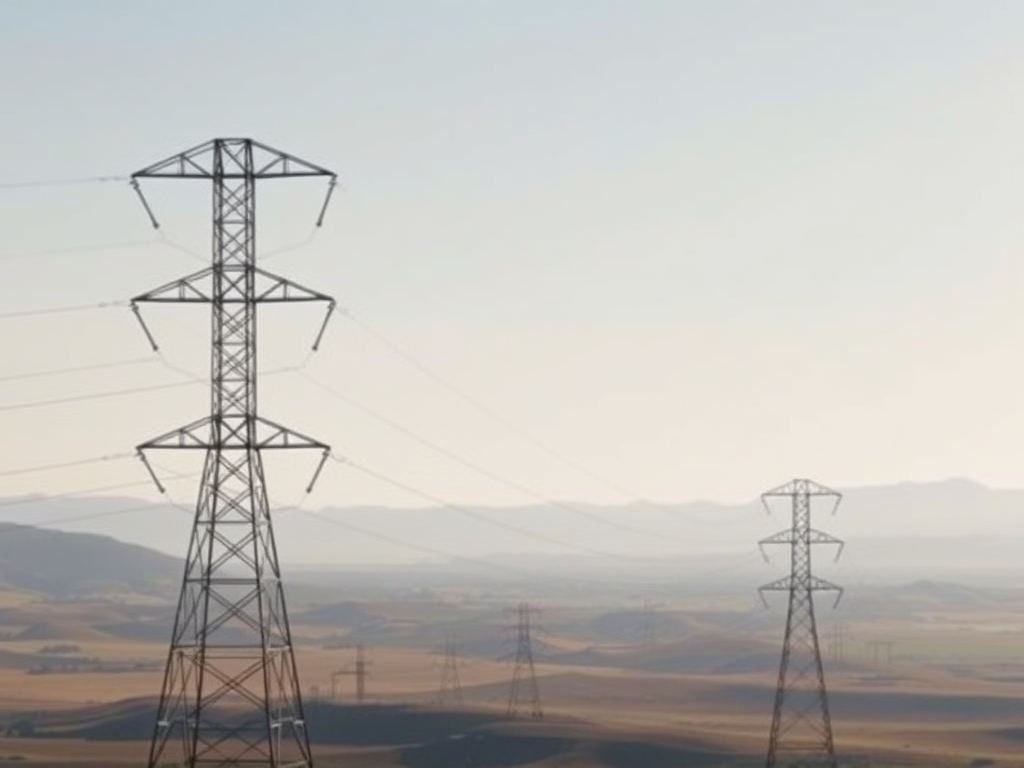

Widely used in powerline inspection, pipeline inspection, search & rescue, surveillance, high-altitude clearing, etc.
