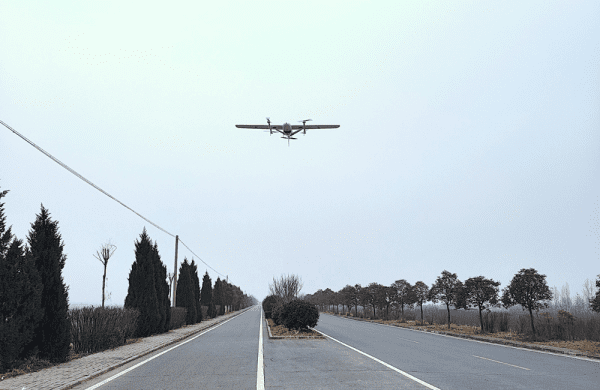

V13-5 Sentinel VTOL Patrol Drone

Mastering the Skies with Precision and Endurance.

> 100 km

Flight Range

44 m/s

Cruising Speed

5~10 kg

Optimal Payload

26.5 kg

Max. Takeoff Weight

Overview

Its robust construction with advanced composite materials ensures mission readiness in diverse environments, while its modular design prioritizes ease of maintenance and adaptability. The Sentinel’s multi-gimbal compatibility extends its versatility, making it an asset for a variety of applications from security patrols to emergency response.

Product Features

The V13-5 Sentinel VTOL Patrol Drone is a comprehensive aerial system, consisting of the drone, payload mount, and control system, designed for extensive patrol operations.

Extended Flight Time

Offers a 160-minute flight duration, reducing the need for frequent landings. Redundant power design to enhance overall flight safety.

Modular Design

Made of durable materials: carbon fiber, fiberglass, and Kevlar materials. Simple maintenance and part replacement.

Multiple Ground Control Options

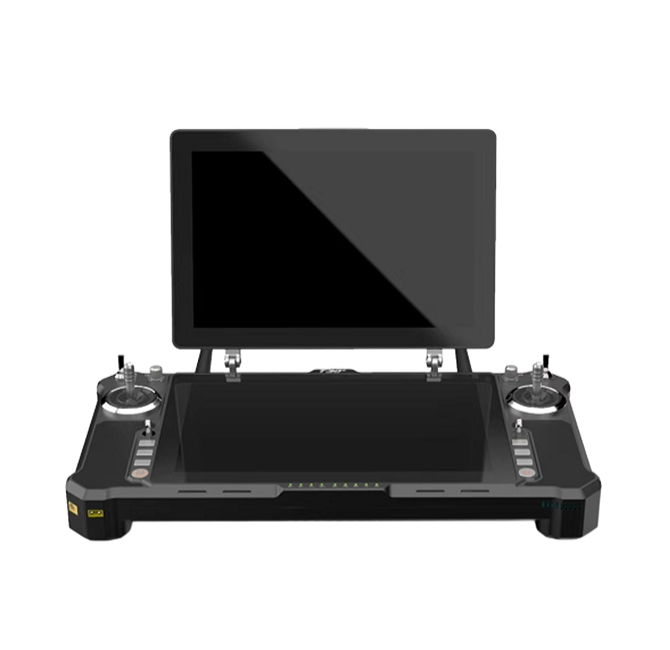

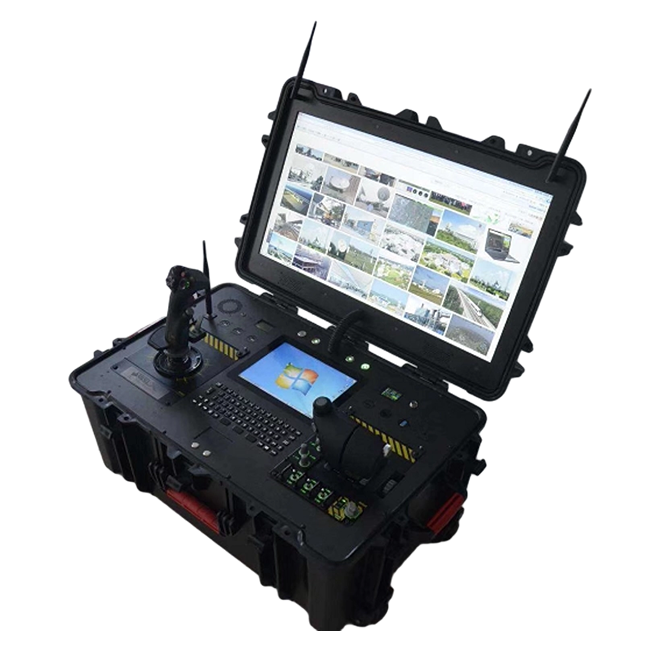

Handheld (single or dual screen) and box-style stations available.

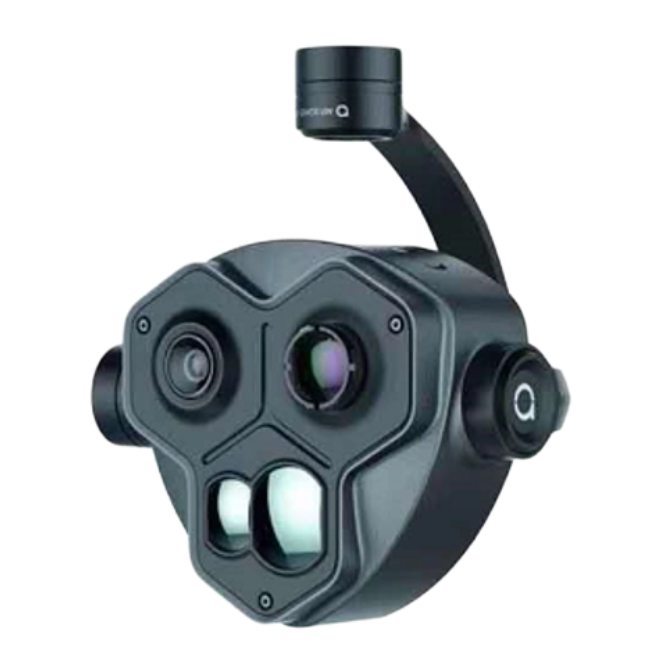

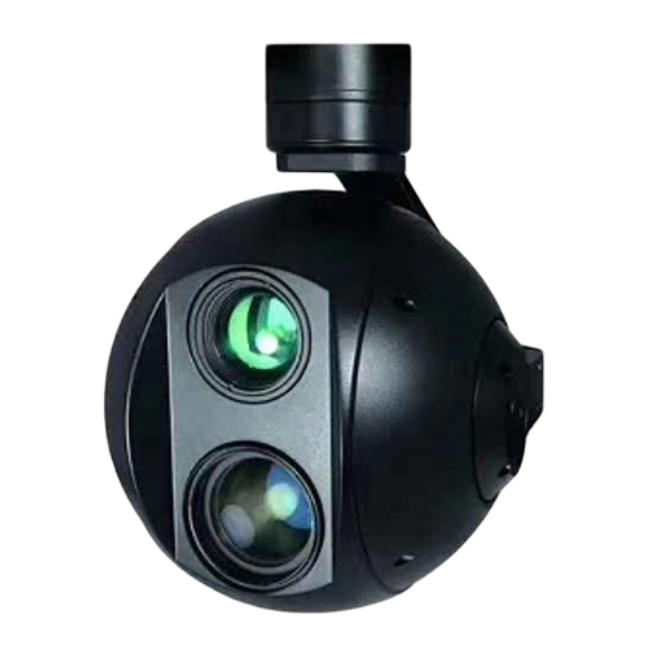

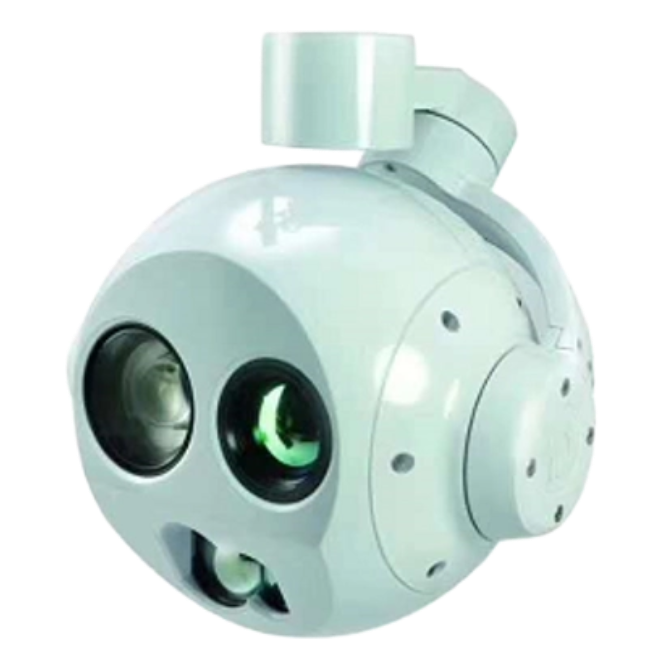

Customizable Gimbal Options

Fitted with various gimbals, adaptable for scenarios like inspections, search and rescue, and aerial surveying.

Technical Specifications

Aerial Platform

Material	Carbon fiber, fiberglass, and kevlar
Wingspan	3.5m
Fuselage Length	1.88m
Power Source	Battery-powered
Optimal Payload	5-10kg
Flight Time	160 min endurance with a 7kg load
Flight Speed	160 km/h
Max. Takeoff Weight	26.5kg
Wind Resistance	Level 5-6

*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy

Compatible Ground Station

The V13-5 Drone integrates with a variety of compatible deployment devices, from cargo boxes and release hooks to emergency drop ropes, empowering it for precise delivery tasks and critical material transport.
