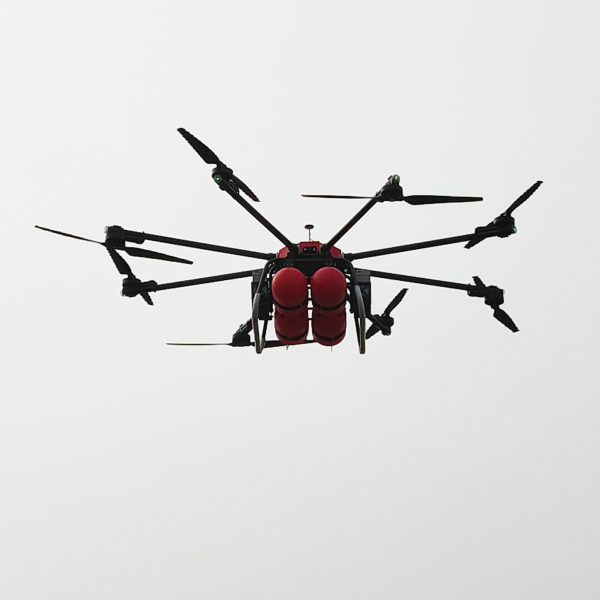

H300 Firefighting Drone
100 kg
Max. Payload
40 minutes
Max. Flight Time
190 kg
Max. Takeoff Weight
≤ 1000m
Operation Height
Firefighting Drone Overview
The H300 Firefighting Drone, versatile for use in mountains, grasslands, forests, and specific urban areas, equipped with a release mechanism, targeting dispenser, laser rangefinder, and four 25kg fire extinguishing bombs. This system is adept at rapid and effective firefighting across various terrains.
Product Features
The H300 Firefighting Drone excels in rapid deployment and autonomous operation, ideal for diverse terrains.
Convenient Transport Rapid Deployment
With a 60 minutes Maximum flight duration, the H300 enables longer missions on a single charge.
Intelligent Blasting Control System
Utilizes advanced control system for precise timing/height-based detonation, using LIDAR for accurate fire location, enhancing firefighting efficiency and accuracy.
Autonomous Operation
Designed for user-friendly, simple operation, it can be quickly mastered and requires minimal human intervention during flights.
Heavy Payload & Long Flight Time
The H300 has a maximum takeoff weight of 190KG, with an unloaded flight time of 40 minutes, allowing for various firefighting and rescue payloads. Post-mission, it can continue monitoring and transmitting real-time visuals to the command center.
Easy Maintenance & Cost Effective
With standardized, modular parts, maintenance is straightforward, ensuring safe operation with regular replacements.
High-Efficiency Extinguishing Bombs
Carries four 25kg pods, covering an area of about 200-300200m² per mission. It’s effective in smoke suppression and cooling, absorbs harmful dust, and the eco-friendly extinguishing agent replenishes vegetation with moisture and nutrients.
Compatible Fire Extinguishing Bombs
The H300 features an intelligent control system for precise extinguishing, carrying four 25KG water-based pods to efficiently cover 200-300m² per mission.
Water-based Fire Extinguishing Pod
The water-based fire extinguishing pod is specially designed and developed for aerial firefighting operations, achieving the requirements of firefighting tasks in various terrains, large areas, and wide ranges through aerial explosion and spraying.
Featured Images
Technical Specifications
Aerial Platform
| Dimensions (unfolded) | 5600 * 5600 * 980 mm（220.47″ x 220.47″ x 38.602″) |
| Max. Payload | 100 kg |
| Weight | 52 kg |
| Max. Takeoff Weight | 190 kg |
| Operation Height | ≤ 1000m |
| Max. Altitude Limit | 4500 m |
Fire Extinguishing Pods
| Caliber | φ 268 mm |
| Total Length of the Bomb | 600 mm |
| Type of Fire Extinguishing Agent | Water-gel based extinguishing agent or dry powder extinguishing agent |
| Net Weight | 25 kg |
| Dispersion Radius | > 15 m |
| Coverage Area | > 200 m² |
| Safety Radius | >40 m |
| Height for Arming Release | > 15 m |
| Bombing Height | 15~100 m |
| Operating Environmental Temperature | -20℃~60℃ |
| Fully Sealed | Waterproof, Moisture-proof |
| Safety Fuse | Double-insured, Explosion-proof |
*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy
Comprehensive Service
Our dedication goes beyond our products; we also provide thorough technical support and training.
