H120 Agricultural Drone

Optimal Spraying Performance
The symmetric 8-Axis design features a large wingspan with high-pressure spraying, covering up to 23 hectares per hour, ensuring optimal spray effectiveness.

Advanced Radar System
Integrates obstacle avoidance and terrain detection radar, safeguarding flight and enhancing safety.

Integrated Flight Control System
Highly integrated flight control system, rigorously tested with thousands of hours of field flying

Triple Satellite GPS System
Offers high-precision positioning with GPS, Beidou, and GLONASS support, ensuring accurate navigation.

20 Liters/minute

Max Flow Rate

60- 40 μm microns

Droplet Size Range

6-12 meters

Spray Width

23 hectares/hour

Operate Efficiency

Compact Upward-Folding Design

The H120 Model features a unique 8-axis upward-folding design, optimizing storage and transportation space. Equipped with a 52L liquid spraying and a 60kg solid spreading capacity, it’s ideally suited for extensive agricultural management. Since its release in 2017, this drone has demonstrated remarkable stability and durability in diverse markets worldwide, making it a reliable choice for large-scale farming operations.

Grain Crops

Commercial Crops

Fruit Trees

Highly Integrated Intelligent Flight Control System

The flight control system integrates an advanced feature set to optimize performance and enhance operational efficiency for users.

Smart Flight Control

Stability and Maneuvering
Navigation and Positioning
Intelligent Route Planning
Fully Automatic Flight
Manual Flight

Intelligent Operation Control

Obstacle Avoidance
Terrain Following
Breakpoint Resumption
Low Battery Alarm
Empty Tank Warning
One-Key Return to Home

Flight Assistance Features

HD FPV Camera
Night Flight Mode
Data Cloud Storage
HD Video Transmission
Real-Time Data Transmission
RTK Base Station Support

Product Features

Boasting stability, dual spray and spread functionality, and strong penetration, with added adaptability for transport tasks.

Rigorously Tested Flight Stability

Optimized with tens of thousands of flight hours to guarantee unmatched stability and reliability.

Spraying & Spreading Dual System

The H120 Model boasts a versatile dual system for both liquid spraying and solid spreading. Its Spray System, with a 52L tank and 16 high-pressure nozzles, achieves a spray width of 6-12 meters. The Spread System features a robust 60 kg tank, ideal for 1-10 mm granules and covers a spread width of 4-10 meters, ensuring efficiency and adaptability in various agricultural applications.

Powerful Spray Penetration

The H120 model features robust spray penetration, essential for effectively treating fruit trees and crops with dense canopies, ensuring deep liquid deposition to lower plant sections facilitated by its powerful downdraft wind field.

Versatile Transport Capabilities

The H120 drone, with a 60kg payload capacity, can transport goods across farmlands, enabling short-distance deliveries and material supply in challenging terrains, showcasing its remarkable versatility in load handling.

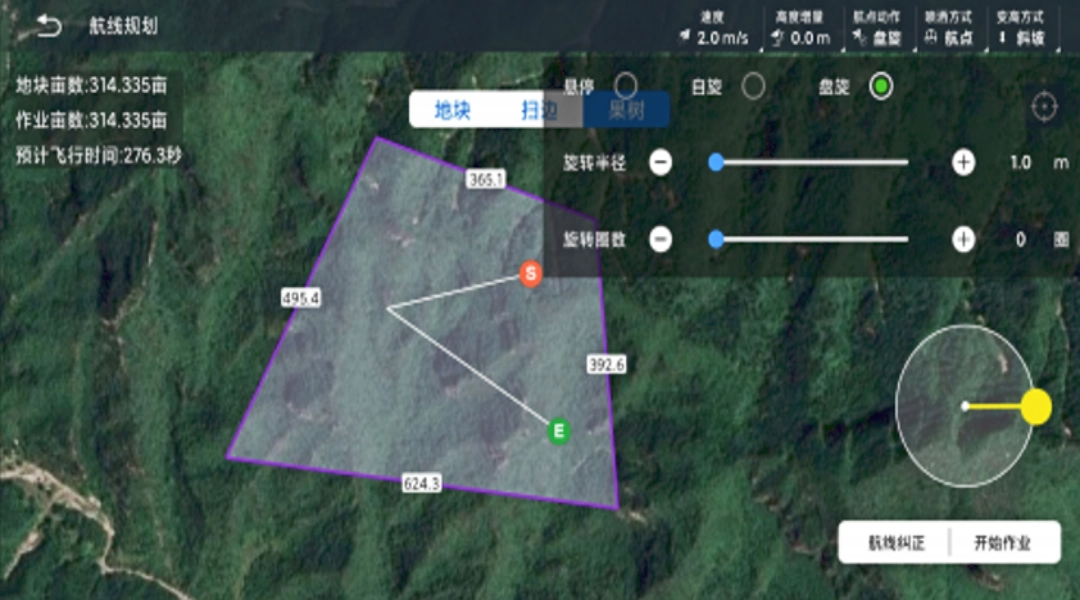

Route Planning

Drone route planning operates in three modes: Plot, Sweep, and Fruiter.

Fruiter
Plot
Sweep

Operating Modes

Fully Automatic

AB Point

Manual

User- Friendly Design

Autonomous Obstacle Avoidance

The front and rear obstacle avoidance radar offering precise detection of obstacles, significantly enhances flight safety

Terrain Following Flight Mode

Terrain Following Radar allows for adaptive flight in varied landscapes, maintaining a consistent altitude, enhancing safety and precision.

Night Flight Mode

Night Flight Mode ensures safe, effective night-time operations, enhancing visibility and navigation.

Breakpoint Resumption Spraying

Breakpoint resumption spraying ensures precise resumption and coverage efficiency after interruption.

Upgradeable to Centrifugal Nozzles

Breakpoint resumption spraying ensures precise resumption and coverage efficiency after interruption.

Modular Design, Easy Maintenance

Easy maintenance and upkeep, Simple assembly and disassembly

1080P FPV (first-person view) camera

High Definition camera offers clear, real-time aerial views for precise drone navigation.

Power System

Equipped with two 14S 28000mAh intelligent lithium batteries and an intelligent dual-channel charger, the drone is designed for rapid charging and continuous operation..

Charging and discharging

Unlimited charging and discharging times within one year.

Anti-collision

Anti-collision, shockproof, anti-penetration, and over-temperature protection.

Auto internal Balancing

Automatic internal balancing of battery voltage for optimal performance.

Standard Configuration

14S 28000mAh Lithium-polymer Intelligent battery, x2 3000w intelligent charger, x1

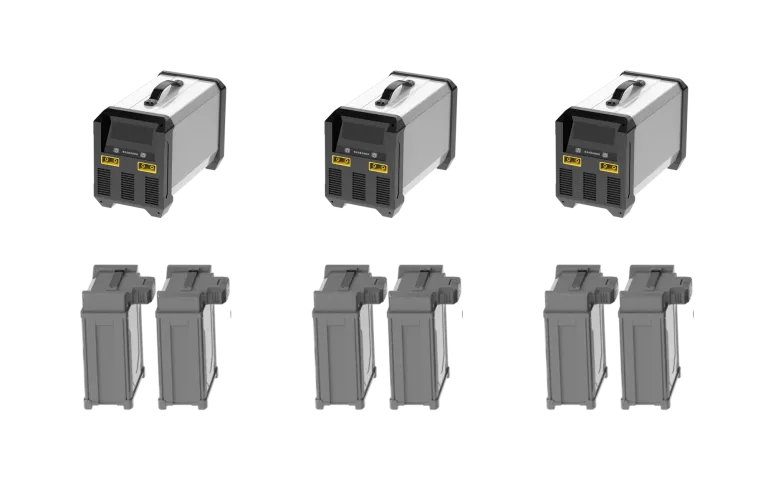

Continuous Operation Configuration

14S 28000mAh Lithium-polymer Intelligent battery, x6 3000w intelligent charger, x3

Package Options

Standard Kit

1 Frame
8 Propulsion Motor
8 Spray Nozzles
2 Water Pump
1 Flow Meter
1 Flight Control
1 Power Module
1 Handheld Survey Box
1 Terrain Following Radar

1 Front Obstacle Avoidance Radar
1 Rear Obstacle Avoidance Radar
1 GNSS (GPS/Beidou/GLONASS)
1 Status Indicator Light
1 FPV Camera
1 Night Navigation Light
1 Remote Control
2 Intelligent Battery
1 Intelligent Charger

Advanced Kit

1 Frame
8 Propulsion Motor
8 Spray Nozzles
2 Water Pump
1 Flow Meter
1 Flight Control
1 Power Module
1 Handheld Survey Box
1 Terrain Following Radar
1 Base Station RTK
2 RTK module
